Description

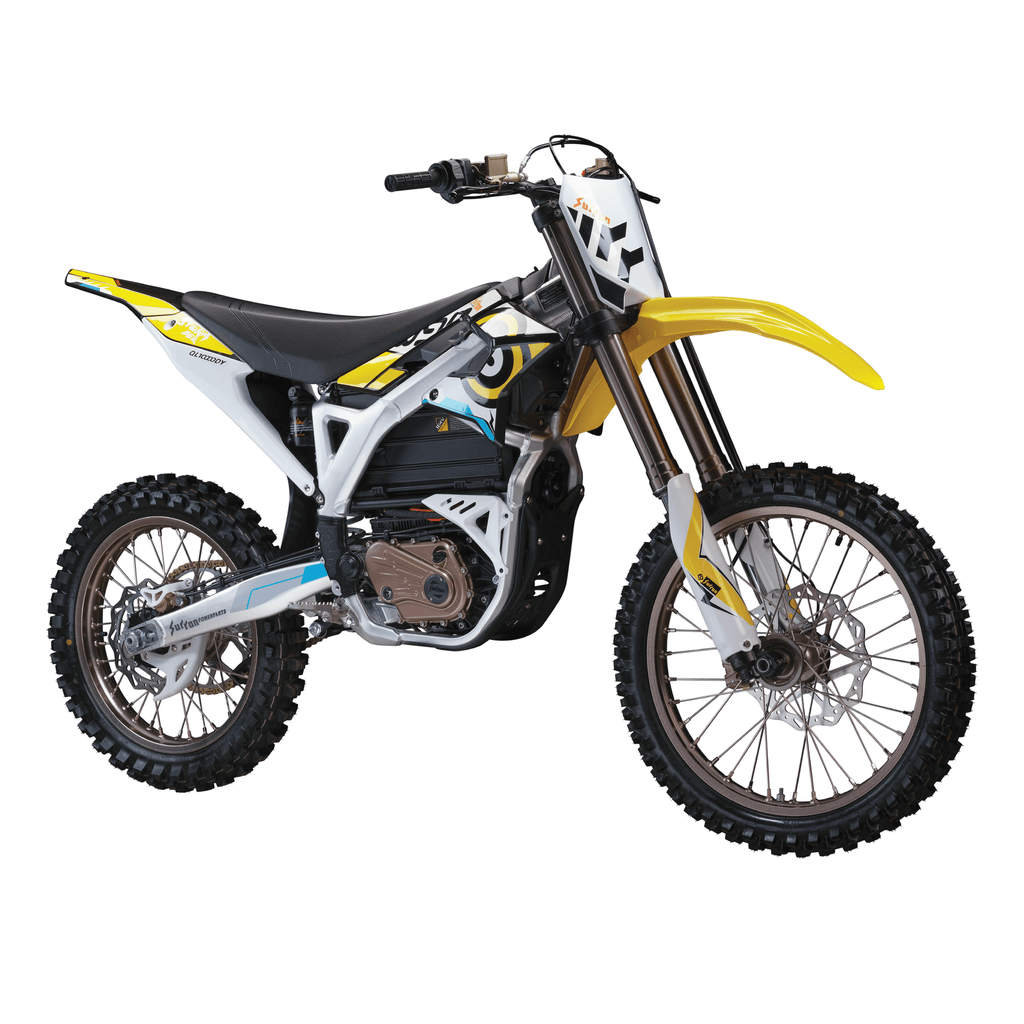

Sur-Ron Storm – Full Size Electric MX/ Enduro Bike. After years of development & innovation, Sur-Ron is now in the final development stages of the new full size electric dirt bike - the STORM. Equipped with the latest 96 volt high power system with gearbox, all new aluminium alloy forged frame, the top level 10C discharge rate lithium-ion battery. 290mm suspension travel up front. Plus a road legal version with ABS. It's a full size dirt bike with massive power & the best power to weight ratio in its class.
Motor
| Motor Type: | Mid-Drive BLDC Motor |
| Mounting Position: | Mid Mounted |
| Weight / Motor External Diameter: | TBA |
| Motor Axial Length: | TBA |
| Peak Efficiency: | TBA |
| Cooling Method: | Water Cooled |
Controller
| Controller Type / Weight: | FOC Sine Wave Controller |
| Dimensions: | 2120 x 805 x 1265mm (including battery) |
| Peak Efficiency: | TBA |
| Traveling Wave Current / Highest Work Temperature | TBA |
Motor Power
| Rated Voltage: | TBA |
| Rated Power / Peak Power: | 22.5KW (96V） |
| Rated Torque / Peak Torque: | 520 N.m |
| Acceleration: | Acceleration(S)：1.9(0-50KM) Acceleration(S)：3.3(0-70KM) Acceleration(S)：3.9(0-80KM) |
| Rated Load: | 120KG |
| Road Legal: | Yes |
Electrical Components
| Horn: | European Standard Horn |
| Battery: | 60V 32A Lithium Battery with 176 Panasonic Cells |
| Battery Life Time: | 500 Cycles (and then the capacity reduces step by step) |
| Battery Charge Level: | Integrated Battery LCD Display |
| Charger: | 10A |
| Charging Time: | 2.5-3.5 Hours |
| USB Connection: | USB-2.1 A Single Socket |
| Speedometer: | LCD Digital Speedometer |
| LED Headlight & Rear Light: | Yes |
Warranty
| Battery / Chassis / Swing Arm: | 18 Months (or up to 20,000 miles on Battery which ever sooner)
|
| Other Components: | 12 Months, excluding service items and subject to servicing NB Warranty work is carried out free of charge subject to proof of correct service history.Surron warranty is a return to dealer cover and does not include transportation costs. We can arrange collection and delivery, but the cost must be paid by the owner, prices available upon request. |
Vehicle
| Chassis Material: |
|
|
| Chassis Process Method: | TBA | |
| Chassis Weight: | TBA | |
| Chassis Surface & Colour Processing: | TBA | |
| LED Headlight: | TBA | |
| Wheel Type & Size: |
TBA |
|
| Tire Size (MX Version): |
Fr.: 80/100-21；Rr.:100/90-18" |
|
| Tire Brand: |
TBA |
|
| Top Speed Sport Mode / Turbo Mode: |
100km/h (96V) / 110km/h (96V) |
|
| Cruising Range Per Charge: |
≥105km (@50km/h） |
|
| N.W. | TBA | |
| Vehicle Dimension: | TBA | |
| Seat Height: | 940mm | |
| Wheel Base: | 1430mm | |
| Handlebar Width: |
TBA |
|
| Available Colours: | Yellow/Black | |
| Curb Weight: | 95KG (without battery) | |
| Power System: | BLDC MOTOR + FOC sine wave controller | |
| Rim Type: |
Front - 21 x 1.60 Rear - 18 x 2.15 19 x 2.15 (Optional) |
|
| Tyre Type: |
Front - 80/110 - 21 Rear - 100/90 - 18 100/90 - 19 (Optional) |
|
| Front Suspension System: |
FASTace 47mm Inverted Fork |
|
| Rear Suspension System: |
FASTace Air Absorber | |
| Front Brake: |
Dual-piston, 270mm Rotor | |
| Rear Brake: |
Dual-piston, 240mm Rotor | |
| Charging Time: |
3H |
|
| Frame Type: |
Aluminium Alloy Forged Frame |
|
| GPS |
APP Link |
