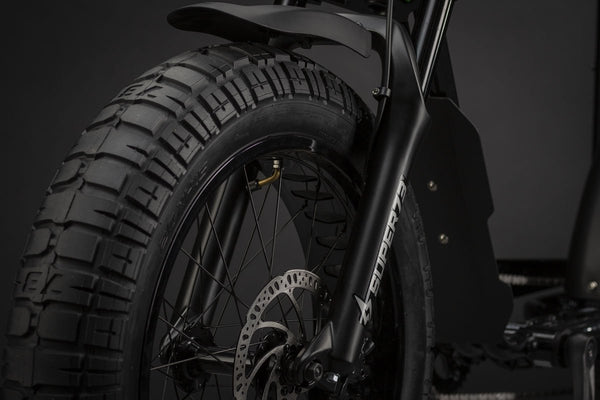

SUSPENSION.
TECHNICAL SPECIFICATIONS
FRAME
6061 / 7005 Aluminum Alloy, 1-1/8" to 1.5" tapered head tube
MOTOR
SUPER73 48V EPAC 2000W PEAK
Top speed
31MPH
Battery
960 watt-hours, 21700 cells
Front Hub
36H, 9x135mm axle, Disc mount
Rims
20" x 100mm alloy with lightening cutouts
Tires
Front: 20 x 4.5" / Rear: 20" x 5"
Inner Tube
20" x 4.5-5", angled valve stem

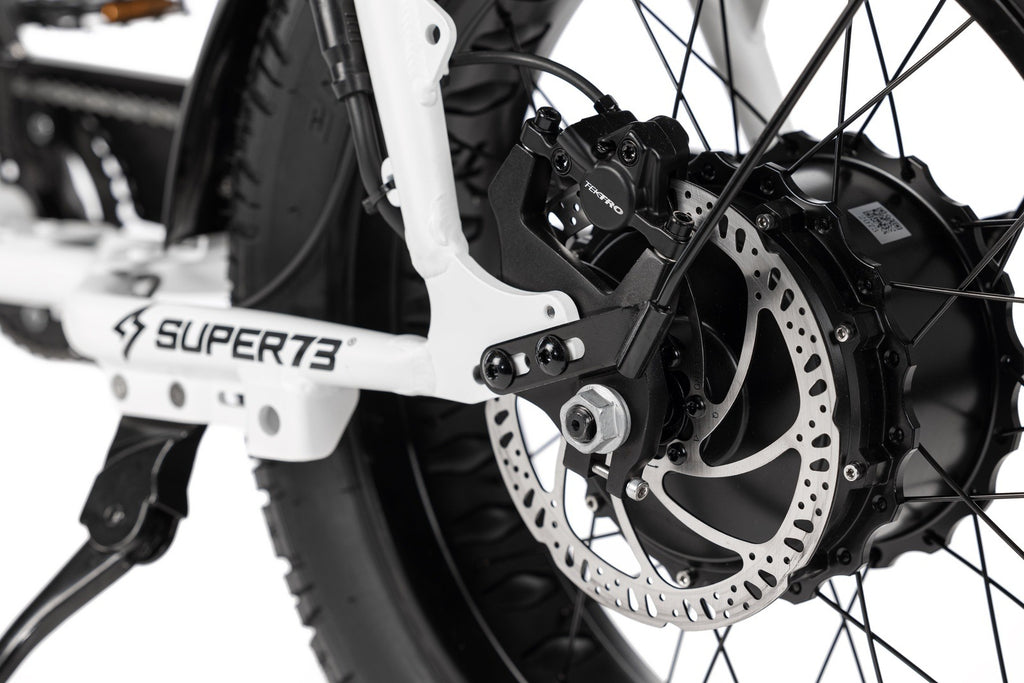

Brakes
TEKTRO 2-piston caliper, 180mm x 2.0mm rotor (MAY VARY)
Suspension
Air Spring Fork with adjustable Pre-load, Compression, and Rebound damping, 120mm travel, 32mm stanchion
Display
Transflective Monochrome LCD + Mobile Device
iOS + Android
Yes
IoT Connectivity
Optional
DC/DC Converter
48v to 12v (120 watt)
Head Light
SUPER73 custom 12v High output triple LED headlight 630 lumens
Tail Light
Roxim R3E LED w/ brake light
Horn
Roxim ZHR02 w/ integrated horn switch
Charger
48V/3A (6-7 hour charge time), Fast charger optional
Throttle
Available with Off-Road Package
PEDAL ASSIST
4 modes
Bottom Bracket
Square taper cartridge BB shell with Torque sensor
Crank / Front Chain
127mm alloy crank arms, 44T chainring
Gearing
TEKTRO 8 SPEED (MAY VARY)
Weight Limit
150 Kg
