Description
LATEST 2023 MODEL

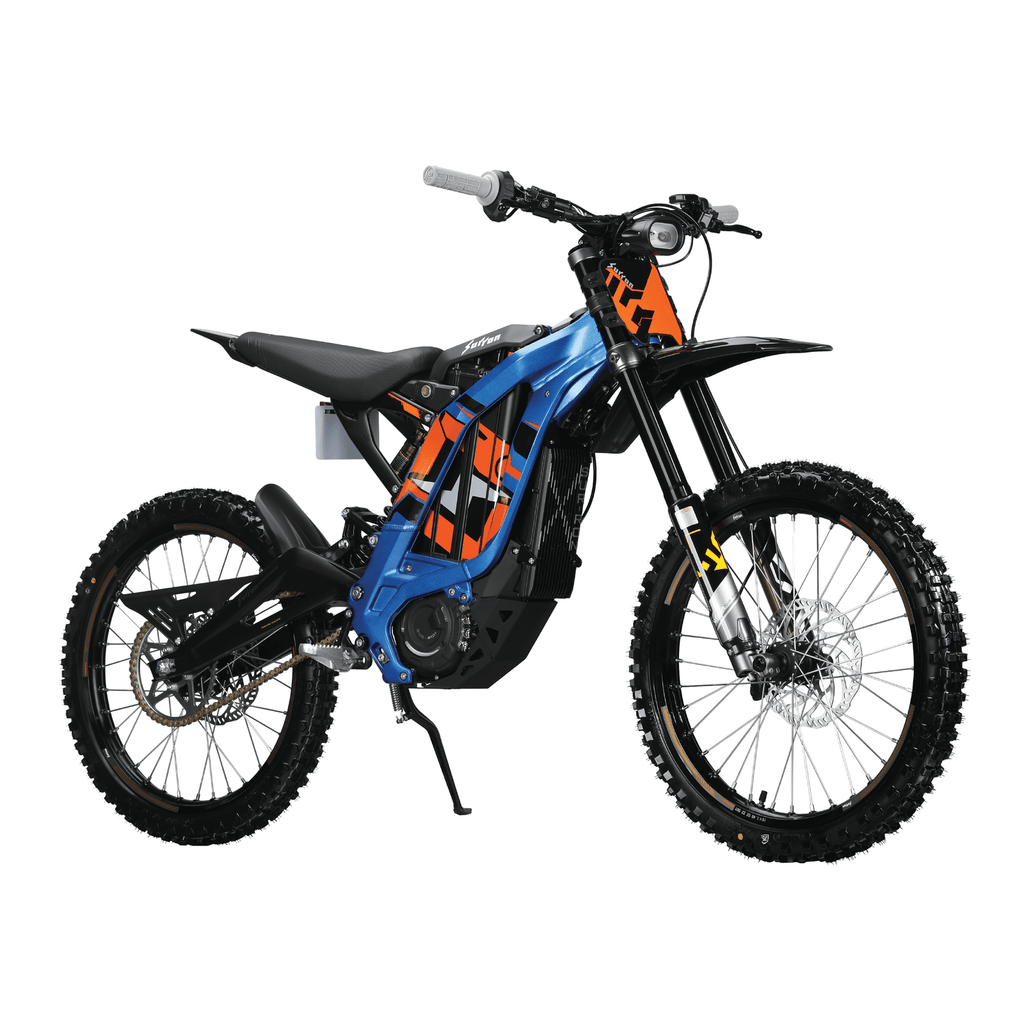

The Electric powered SUR-RON LB X Series Dual Sport E Dirt Bike promises advanced fun on all terrain. 60V 40AH battery and more than 6kW of peak power from a removable Samsung 35e battery pack. Forged light weight alloy frame combined with hi-spec components, total weight just 47kg. 4 Piston Hydraulic Disc Brakes Front and Rear. LCD dash with USB charger point. Aimed at youth to adult, with a climbing ability of over 45° it offers hours of near silent fun with a range of 20 to 60 miles per charge, depending on mode and Fast Re Charge 2.5 to 3.5 hours. Full UK technical, spares and marketing support.
Motor
| Motor Type: | PMSM |
| Mounting Position: | Mid |
| Weight / Motor External Diameter: | 7.0kg / 180mm |
| Motor Axial Length: | 130mm |
| Peak Efficiency: | 95.60% |
| Cooling Method: | Air-Cooled |
Controller
| CONTROLLER | |
| Controller Type: | X Version Sine Wave |
| Dimensions: | 240mm x 110mm x 50mm |
| Peak Efficiency: | 98.50% |
| Power Modes: | Eco and Sport |
Motor Power
| Rated Voltage: | 60V (DC) |
| Rated Power / Peak Power: | 3000W / 6000W |
| Rated Torque / Peak Torque: | 10.2Nm / 39.00Nm |
| Motor Shaft Output Torque @ 1000RPM: | 35.40Nm |
| Rated Rotation Speed: | 4300rpm |
| Peak Efficiency: | 97.8% |
| Range of Efficiency (≥80): | 1.4Nm - 21.5Nm |
Electrical Components
| Horn: | European Standard Horn |
| Battery: | 60V 39.5A Lithium Battery with 176 Samsung Cells |
| Battery Life Time: | 500 Cycles (and then the capacity reduces step by step) |
| Battery Charge Level: | Integrated Battery LCD Display |
| Charger: | 10A |
| Charging Time: | 2.5-3.5 Hours |
| USB Connection: | USB-2.1 A Single Socket |
| Speedometer: | LCD Digital Speedometer |
| LED Headlight & Rear Light: | Yes |
Warranty
| Battery / Chassis / Swing Arm: | 18 Months (or up to 20,000 miles on Battery which ever sooner)
|
| Other Components: | 12 Months, excluding service items and subject to servicing NB Warranty work is carried out free of charge subject to proof of correct service history.Surron warranty is a return to dealer cover and does not include transportation costs. We can arrange collection and delivery, but the cost must be paid by the owner, prices available upon request. |
Vehicle
| Chassis - Swing Arm Material: | No. 6061 T4 & T6 Aluminium Alloy |
| Chassis Construction Method: | Forged by 6000 Tons of Pressure |
| Chassis Surface & Colour Processing: | Anodic Oxidation |
| Front Suspension: | DNM, RST or Fastace |
| Rear Shock Absorber: | Adj DNM, RST or Fastace Shock with TR Suspension Link System |
| Wheel Type & Size: | Spoke Wheels, Front/Rear 19 x 1.4 Alloy Hubs |
| Tire Size: | Front/Rear 70/100-19 CST |
| Top Speed: | 47 MPH 73KMH Varies depending upon load and gearing |
| Max Range: | 60 Miles @ 20 MPH average speed depending upon terrain |
| Net Weight: | 47kg plus battery |
| Max Load: | 100kg (15.75 Stone) |
| Max Climb: | 45° |
| Rear Sprocket: | 48T |
| Side Stand: | Yes with kill switch |
| Vehicle Dimensions: | 1870mm x 780mm x 1040mm |
| Min. Ground Clearance: | 270mm |
| Wheelbase: | 1260mm |
| Seat Height: | 84 to 88cm |
EXPLORE NEW LANDS.
WELCOME TO THE NEXT GENERATION OF ELECTRIC PERFORMANCE BIKES.
Sur-Ron is a surprise hit across many disciplines, Trials, Enduro, Hill climbing, Exploring or Freestyle fun. It’s immense torque has won the hearts of the most professional riders.
By Integration, Design, or Performance, Sur-Ron E Bikes set new standards in all areas
