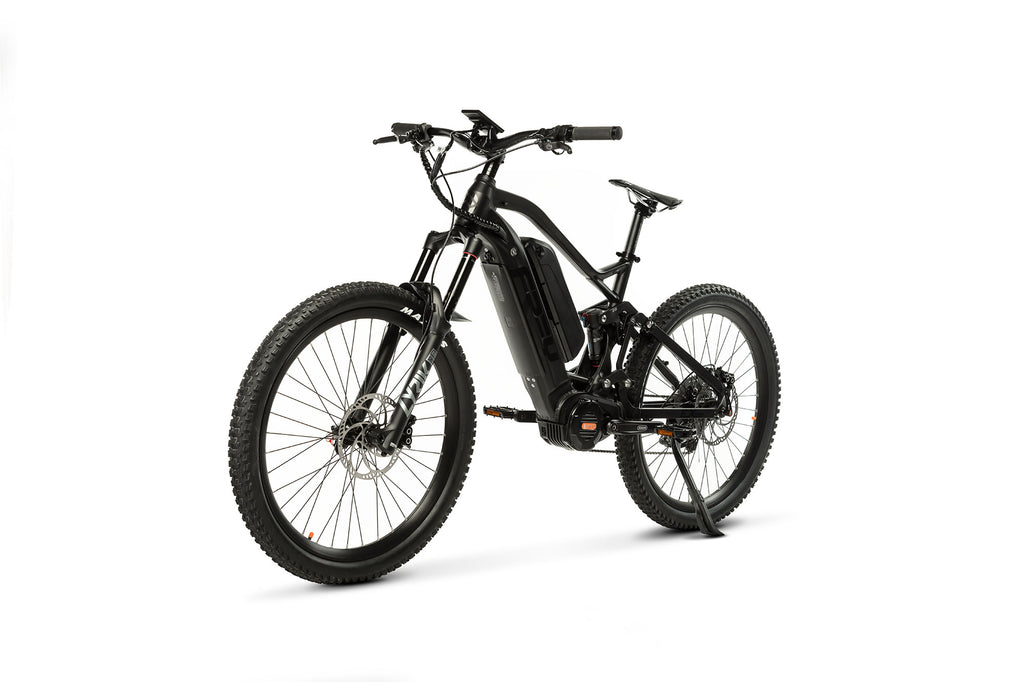

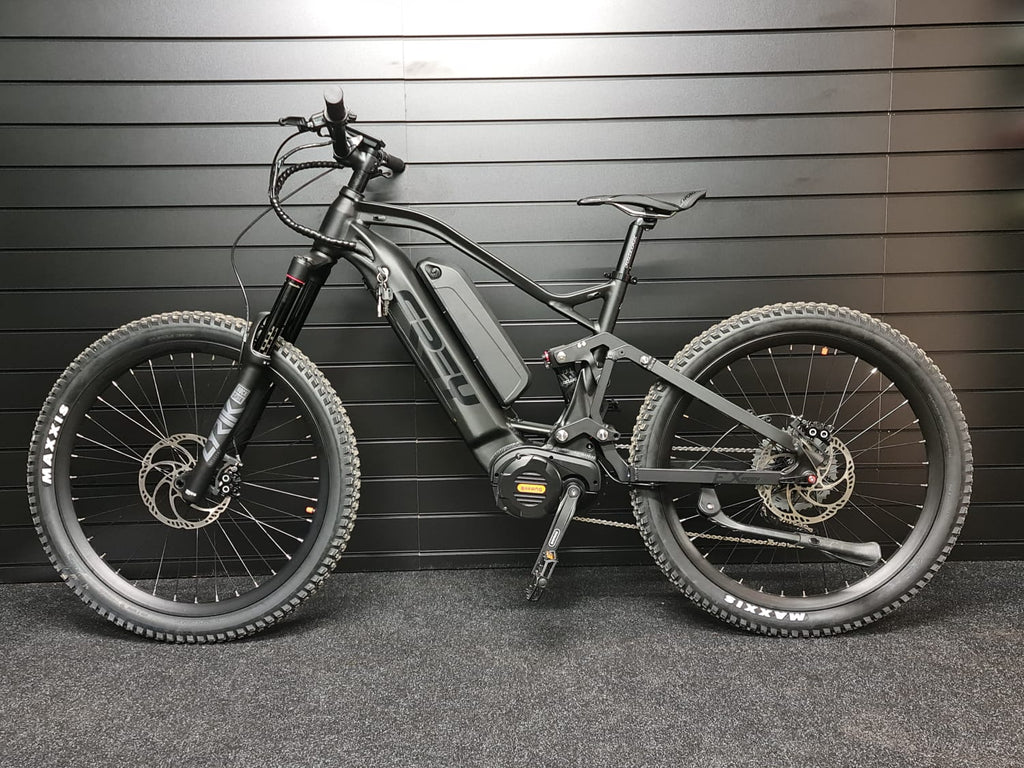

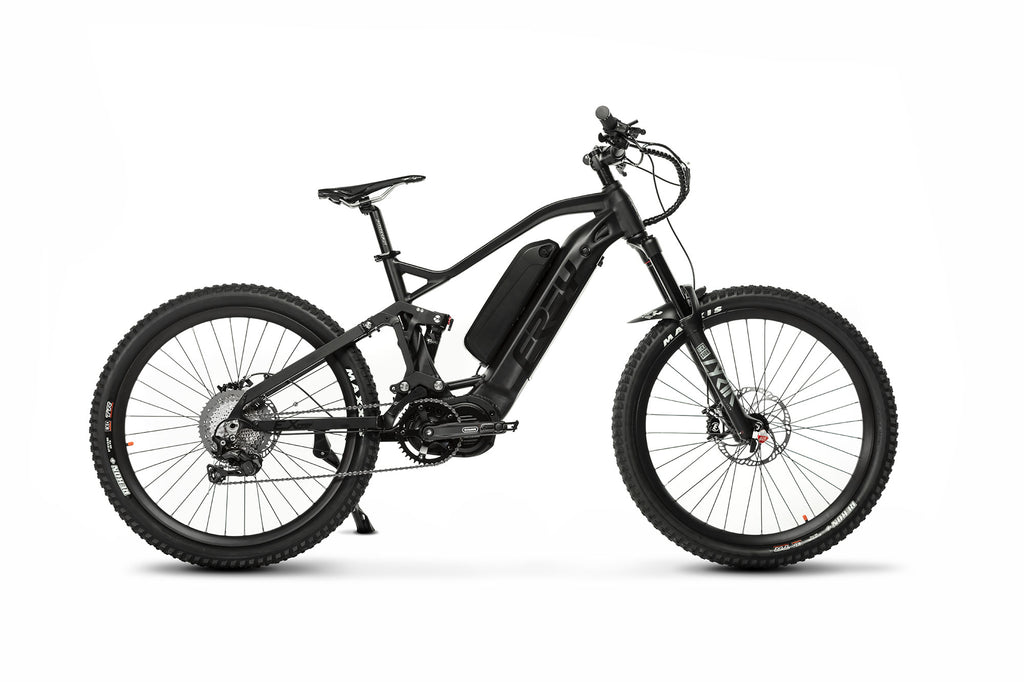

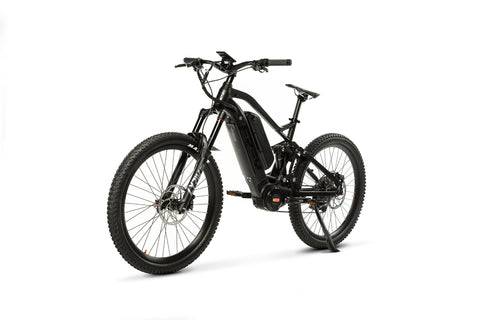

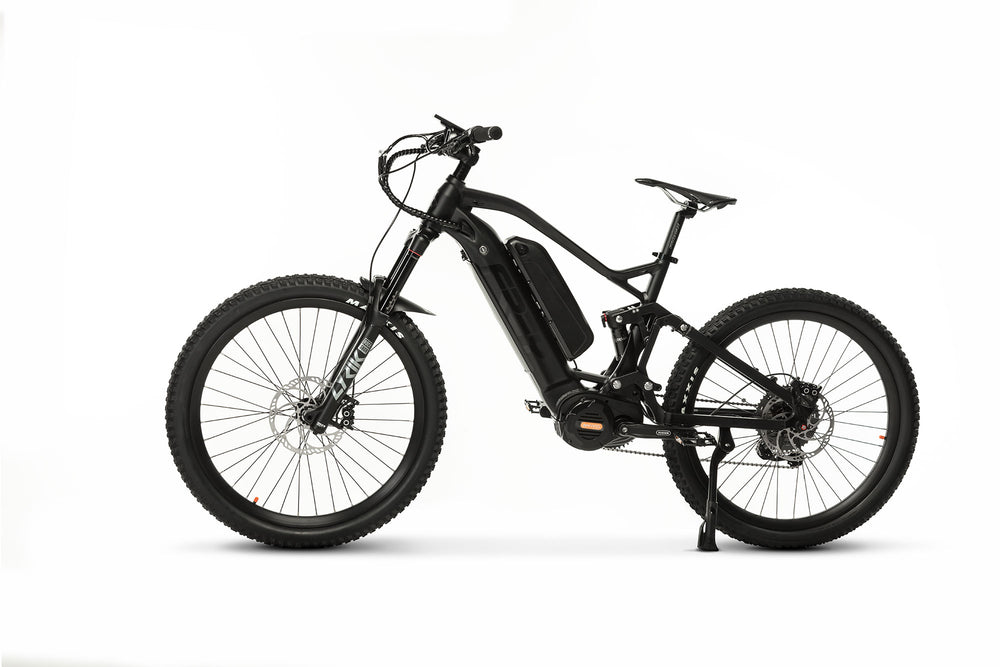

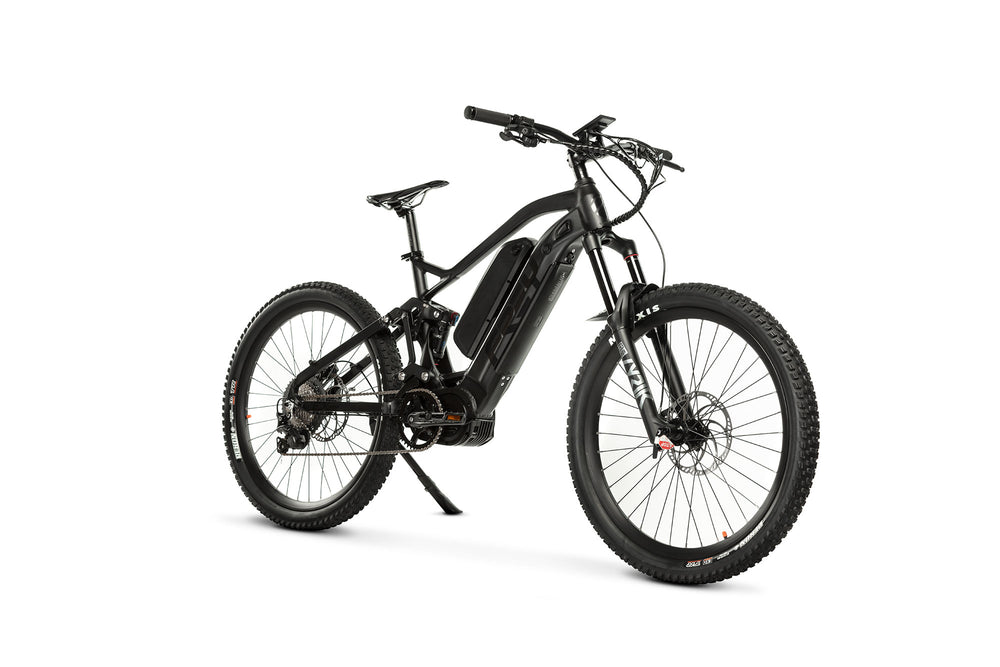

The all new FREY EX PRO eMTB is developed for high-end off-road performance, combining the most powerful mid drive motor, an advanced enduro spec chassis with the best quality components in the business. TOP SPEED OF 38MPH!
The EX PRO is made with a focus on aggressive trail riding and mountain climbing, the BAFANG ULTRA M620 mid-drive motor boasts a 160Nm of torque and peak output of 1600W, no other motor on the market feels as effortless and fun on technical climbs as the BAFANG ULTRA. The power of this motor is immense, around 3x the torque of most Bosch, Brose, or Shimano mid-drive motors on the market. The model features a DUAL BATTERY system: Twin Hollow-core Technology hides the master battery pack in the downtube while supporting a stiff front triangle and one removable Boost Battery connected to main frame tube to boost performance and double up your ride time for longer sessions.
Brake System
| Magura MT5 Ne with brake sensor |
BRAKE LEVER |
| Magura MT5 Ne F:203MM R:203mm |
BRAKES |
Transmission
| CRANK WHEEL |
40T alloy crank wheel with protector plate for chain |
| CRANK ARM |
Alloy 170mm crank arm |
| BB PART |
Pedal sensor integrated (SR PA31.32.ST) |
| PEDAL |
Wellgo pedals for MTB |
| DERAILLEUR |
Shimano RD-M8000 |
| GEAR SHIFTER |
Shimano SL-M8000 |
| CASSETTE |
Shimano XT M8000 11/46T |
| CHAIN |
KMC e 11 speed chain |
Wheel Sets
| Double-Wall thicker alloy for mountain bike 36H |
RIM |
| Strong steel in black |
SPOKES |
| Maxxis 27.5*2.8" REKON+ TLR |
TIRE |
| Quanta 110*15mm |
FRONT HUB |
| Quanta 148*12MM |
REAR HUB |
Electric System
ELECTRIC SYSTEM
| BATTERY |
48V/14Ah Samsung3500mA cell |
| MOTOR |
Bafang G510.1000W,Max Torque: 160N.m |
| CONTROLLER |
Bafang matching controller system in motor |
| PEDAL SENSOR |
Speed & Torque sensor integrated |
| DISPLAY |
LCD: DP C18 |
| CHARGER |
AC100-240V, 50-60Hz, OUTPUT:54.6V,2-3A |
FRAME WORK
| Al alloy 6061#, unique design suspension system |
FRAME |
| Rockshox Lyrik RC Boost 110*15mm,180mm |
FORK |
| Rockshox Deluxe 205*65mm,160mm |
SHOCK |
| Promax 780mm length 25mm rise |
HANDLEBAR |
| Promax handle stem 50MM length |
HANDLE STEM |
| Neco H383EM with sealed bearings |
HEADSETS |
| Promax aluminum alloy 31.6mm |
SEAT POST |
| Prologo kappa RS saddle from italy |
SADDLE |
